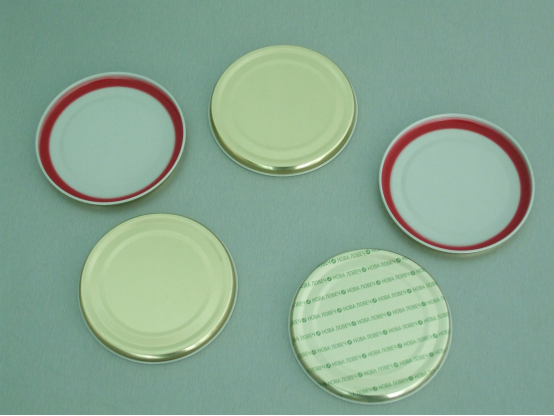

8011 aluminum sheet for jar cap

Author: frank   Time:2016-04-26   Source:Original

8011 aluminum sheet for jar cap

Alloy Temper :8011 H16..

Lead Time :30 days.

Thickness :0.2-0.27mm.

Product Detail


 Alloy type 8011 H16 According to EN573-3

1.Chemical Composition : Alloy type 8011 H16 According to EN573-3

2.Size and deviations from the size:

-Thickness tolerance +/- 0.005mm
-Width tolerance -0+0.5mm
-Length tolerance -0+0.5mm


3.Deviations of the forms/shapes:

- Deviations of the straight for hardness of the longitudinal border max 1mm
- Deviation of flatness--max 4mm
- Rectangularity: max difference in the diagonals--3mm
- Dislocation between the sheets--max 2mm

4.Surface of the sheets

    The surface of the sheets shall be oil-free, this is controlled by testing with clean natural cotton pads, dipped in 100% distilled water. Laying is steady, without stopping from end to end. Level of oil free, B,C, or D.
Droplets, spots caused by corrosion and burnt lubricant on the surface of the sheets not acceptable.
Minor scratches and staining not acceptable as well.

Surface type:
a.Plain mill finish aluminum strip
b.DOS oil lubricated finish
c.Chromated finish
d.One side golden/white/red/blue/black,etc other colored, other side protective lacquered
e.both sides clear/transparent lacquered

5.Mechnical data:

Resistance to stretching Rm--Min 180 Mpa  Max 220 Mpa
Yield strength Rpop Min 145Mpa
Elongation Min 2%

6.Packaging:

    Wooden case packing could guarantee the quality of the materials during transportation and storage.
All stacks of the aluminum sheets are bound firmly in nylon, and respectively fixed in wooden cases.

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Other Aluminum
Each Total
8011 0.4-0.8 0.5-1.0 0.1 0.1 0.1 0.1 - 0.1 0.05 0.05 0.15 Remainder

Temper Thickness mm Tensile Strength
 Rm MPa
Yield Strength
Rp0.2 MPa
Elongation %
 A50mm
Bend Radius Hardness HBWa
H14  0.20-0.27 min. max. min. max.   180° 90°
120 170 110   1     41
H16 0.20-0.27 160   145   1     50
